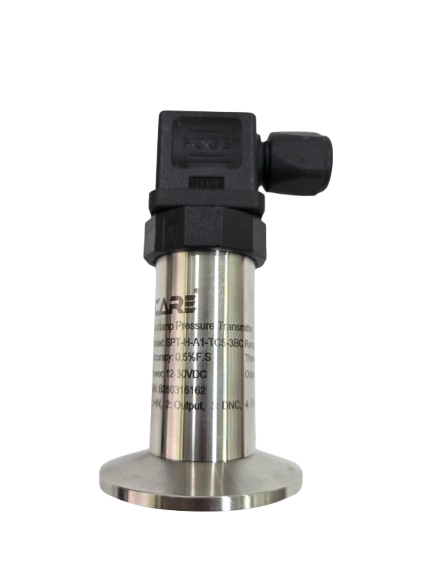

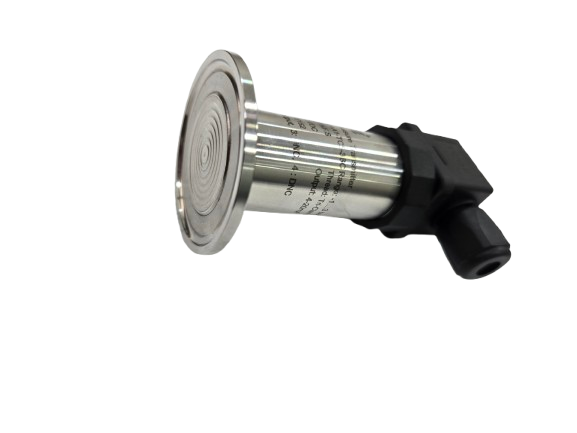

SPT Series
| Principle | Gauge / Absolute / Vacuum and Compound |
| Measuring Range |
|
| Overload | X 3 FS without Damage |
| Accuracy | ±0.25% F•S |
| Output signal | 4~20mA DC, 0~5(10)V, 1~5V |
| Power supply | 18 ~ 36V DC (STD. 24V DC) |
Technical Specification
| Electrical Conn` | DIN Connector |
| Process Conn` | G 1/4″, 7/16 UNF, TC End Female and other connection available |
| Diaphragm | SS_316L |
| Wet part | SS_304,SS_316 |
| Op.Tempeature | -40°C to +200°C |
