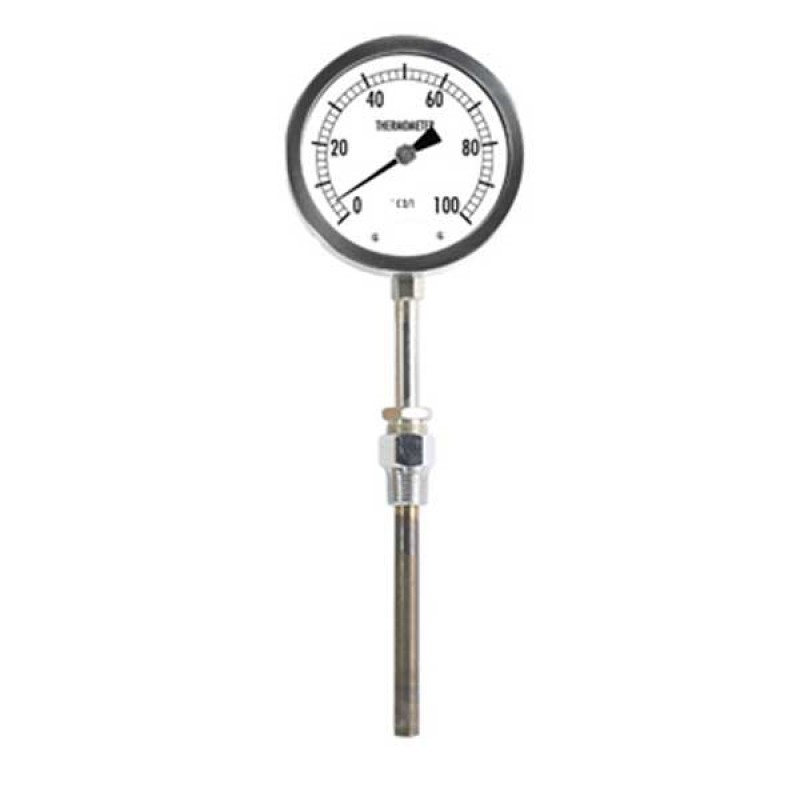

The scale interval of this instrument is divided equally. Therefore, it is easy to read the scale when measuring the temperature.
| Diameter | 100 mm/ 150mm |
| Accuracy | Grade : ±1.0% of Full Scale |
| Scale Range | -30° ~ 650° |
| Common Temperature | 75% of Full Scale |
| Degree of Protection | IP65 |
Technical Specification
| Case & Cover | SS 304 |
| Connection | SS 304/ SS 316, BSP/ NPT ↔½, TC End & Others |
| Window |
General glass Tempered safety glass Laminated safety glass |
| Type | Bottom Type, Capillary Type, Back type |
| Dial |
Aluminum Color of white Black gradation and characters |
| Pointer |
Aluminum Black coating |
| Stem | SS 304, SS 316 |
| Well | SS 304, SS 316 |
