Application

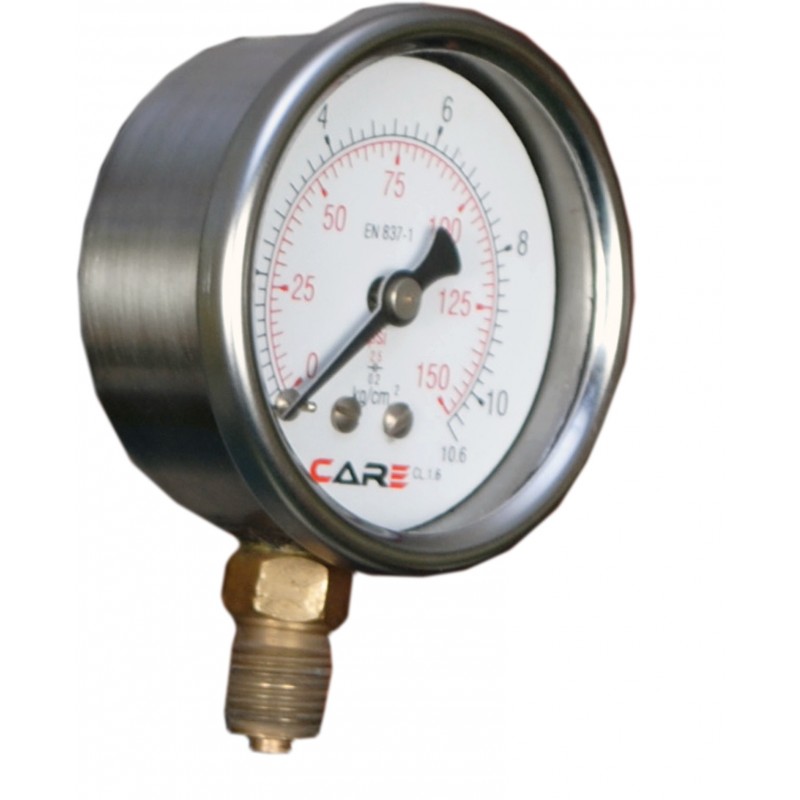

ESB Series is a special design with stainless steel case and brass wetted part and fillable option for extreme
vibration application and non -corrosive ambient field condition. And ESS Series is all stainless Steel.
Feature
- Fix pointer as standard
- Field liquid fillable
- Class 1.6 Accuracy to EN837
- Sensing Element : Bourdon tube
- Sensing Element material : Brass/ SS316
- Simple installation and low maintenance
- Can be used in conjunction with Diaphragm Seal Units
Technical Specification
| Ref. Design | EN837-1 |
| Dial | 2.0"(50mm),2.5"(63mm),4"(100mm), 6" (150mm) |
| Case material | AISI SS304 |
| Sensing Element | Bourdon tube |
| Sensing Element material | BRASS/ AISI SS316 |
| Window | Standard instrument Acrylic /glass as standard |
| Dial | Aluminum white finish with black & Red lettering |
| Pointer | Black aluminum, fixed,Adustable |
| Bazel | Crimping or Byonet type |
| Filling | Dry or Glycerin |
| Accuracy | Class 1.6% FSD |
| IP Protection | IP 65 |
| Operating Temperature | -10 to 70 Deg. |
| Connection | 1/8",1/4",3/8" ,1/2" BSP/ NPT (M) & Others |

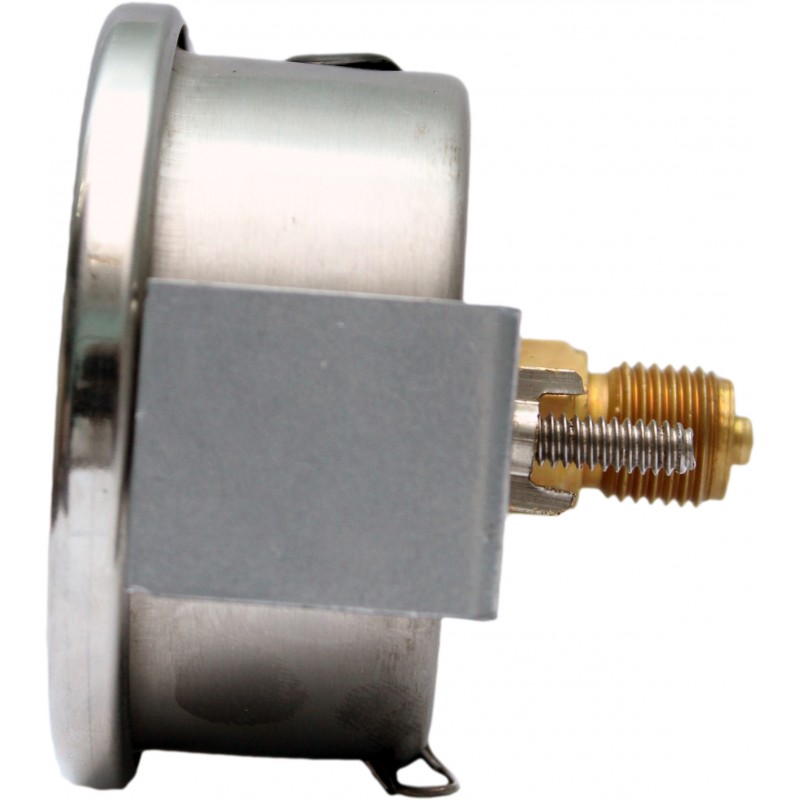

| Mounting | Bottom,Back Direct, Bottom Surface, Back Panel, Back Bracket |
