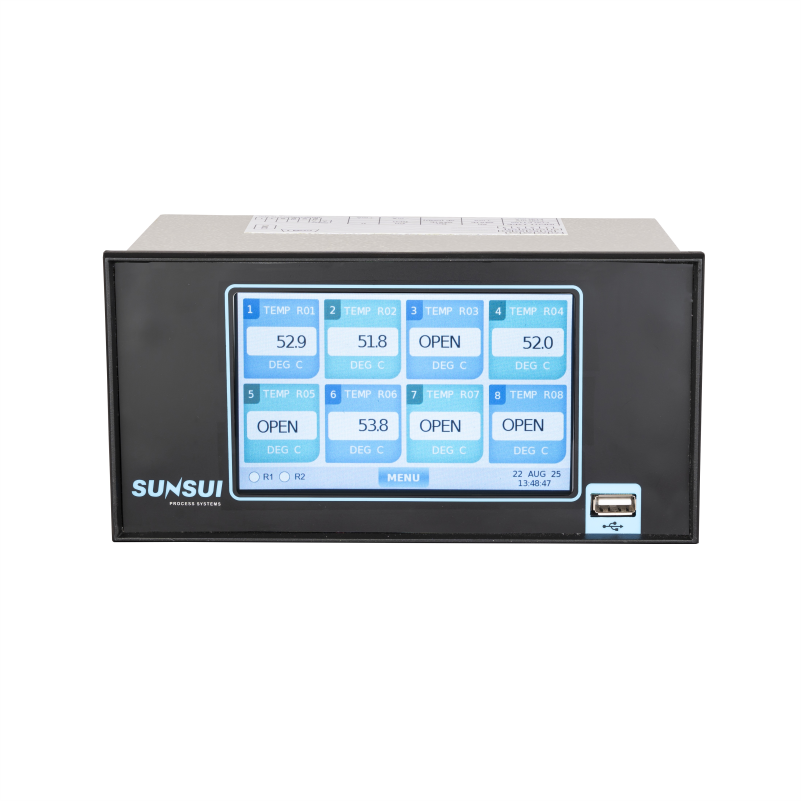

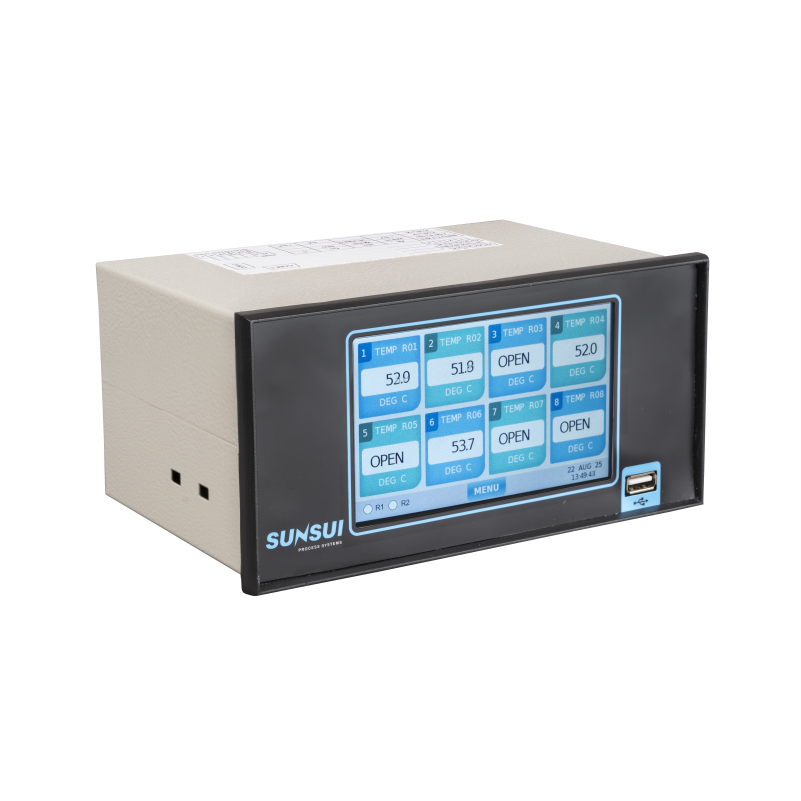

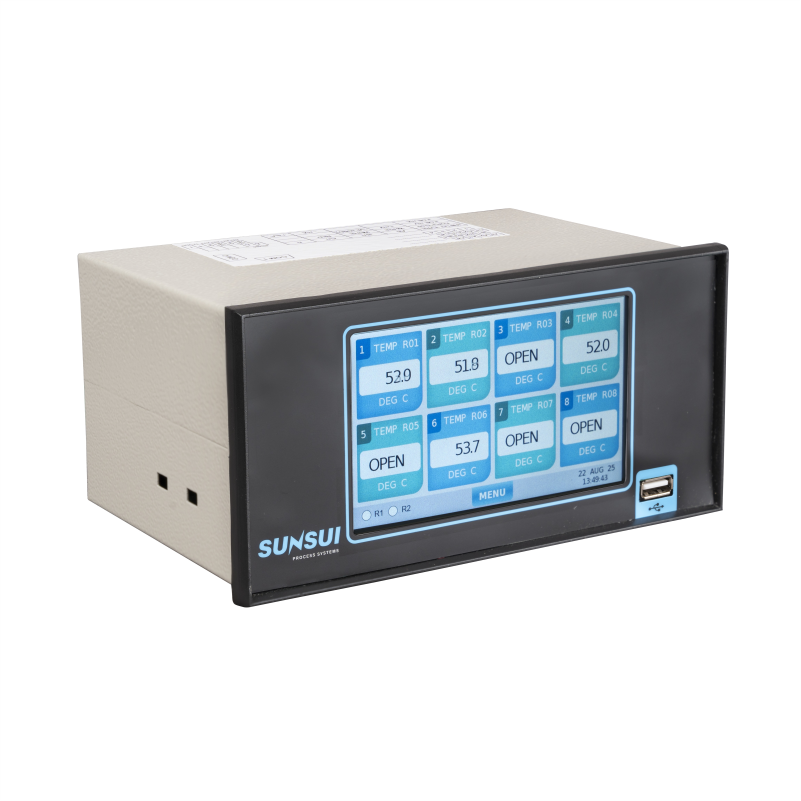

SMARTLOG-08/16
This system is used for monitoring the data of any universal input. The data logger
will log the data with user settable interval and the data will be download by
connecting the pen drive or through the PC software
Technical Specification
? 5.1” Touch screen with broad font reading view.
? Pen Drive port for easy data retrieval in Excel format
? Individual channel name and unit editing.
? Two Way software communication
? Available with RS232, RS485, Ethernet and Wireless RF communication
? 21CFR part 11 Complied software and Normal software available
PART NO. : SMARTLOG-08/16
- Input : Universal
- Display : 5.1 Inch Color Graphical Display with touch Screen for user interaction.
- Data Storage : 60,000 samples
- Power Supply : 12VDC (230VAC to 12VDC adapter can be provided)
- Cutout Size : 92 mm (H) X 187mm (W) X 177mm (D) Standard Panel mounting
