Part No.: HTS 401
Modular Humidity and Temperature Sensor for Demanding Climate Control

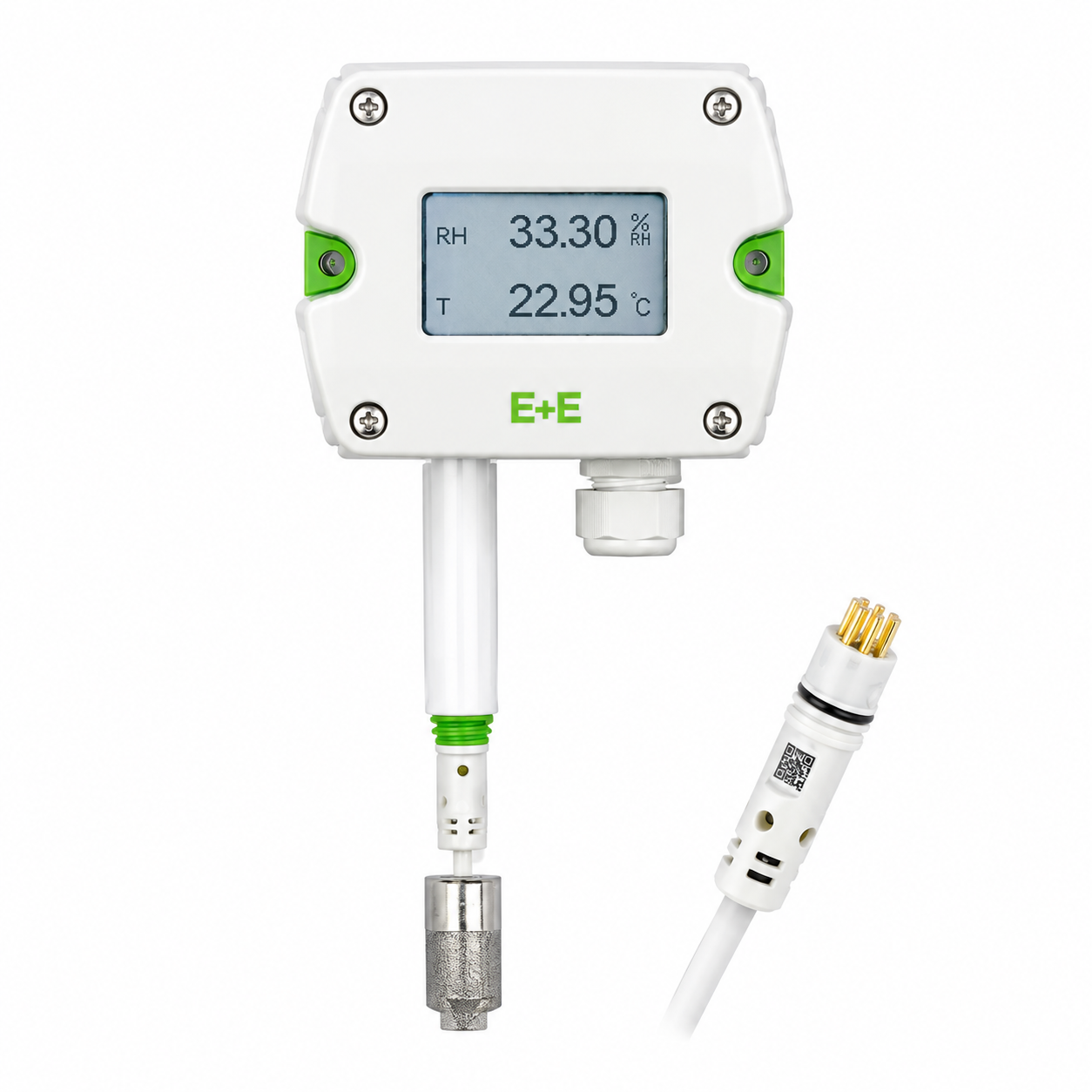

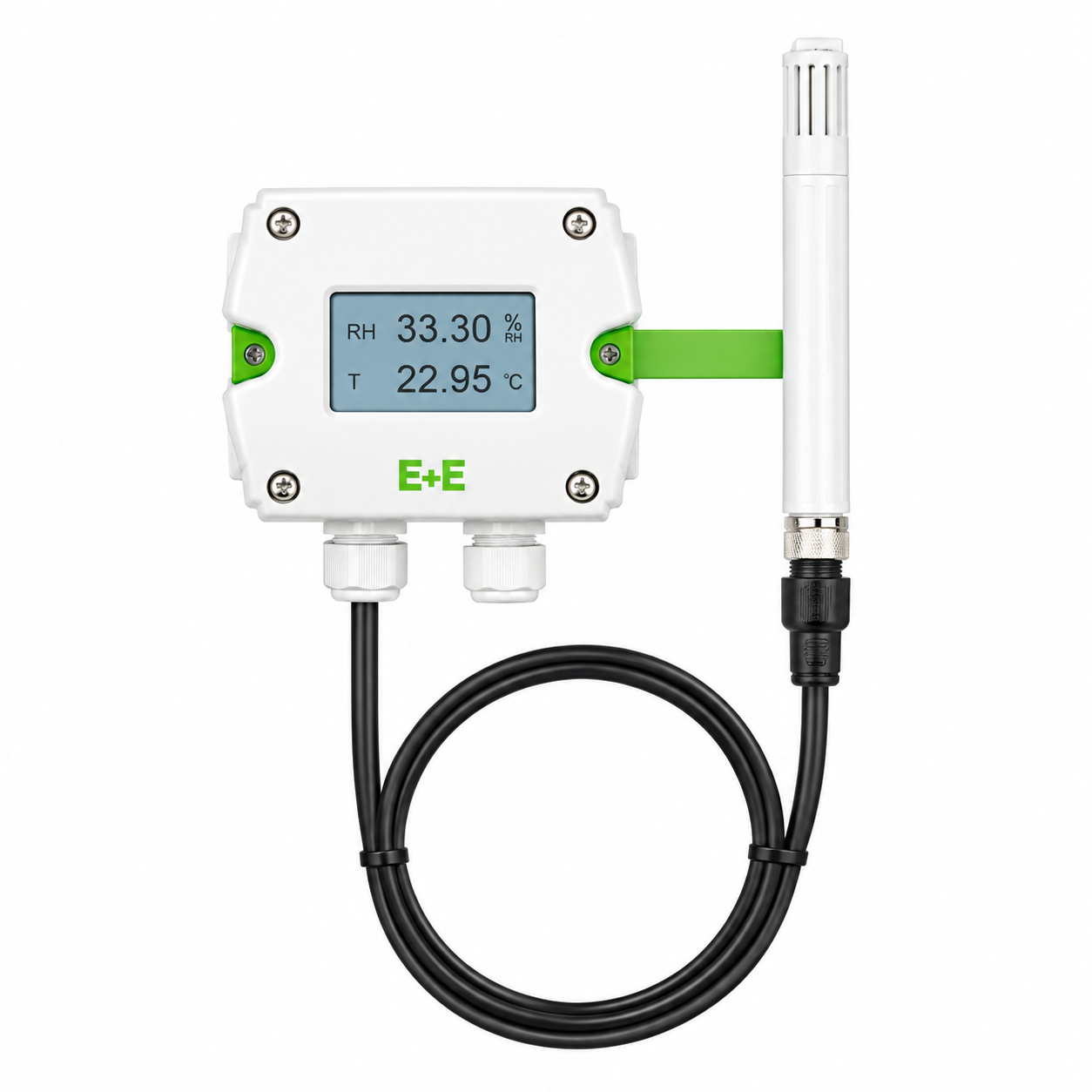

The HTS401 delivers modern humidity and temperature measurement that is fail-safe, precise and ready for the most demanding environments. With measurement accuracy up to ±0.95 % RH and ±0.1 °C (0.18 °F) and an operating range from −40 °C to +80 °C (−40 to +176 °F) , the HTS401 integrates flexibly into diverse applications, from outdoor installations to cleanroom environments.
- The rapidX measuring module can be replaced within seconds without tools.
- Precise process control and tangible energy savings in operation
- Calibration is straightforward and automatically provides a digital 3.1 inspection certificate, making the HTS401 ideal for validated or documentation-critical processes
Technical Specification
| Measuring range Humdity | 0...100% RH |
| Accuracy Humdity | -15...40 °C <90% RH ±(0.95+0.0013*mv)% RH |
|
Measuring range Temperature (wall mount) |
-40...60 °C (-40...140°F) |

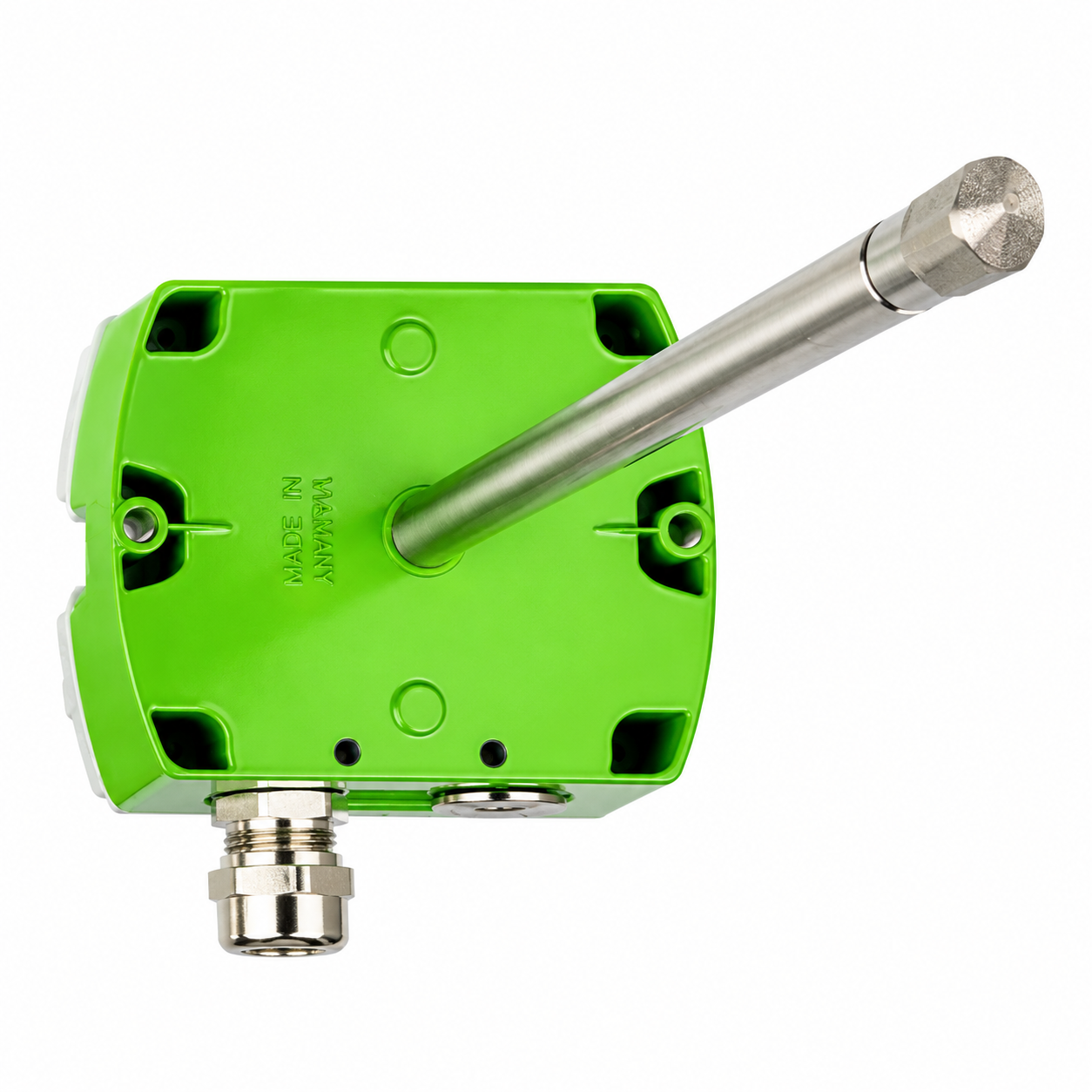

| Measuring range Temperature (duct mount) | -40...80 °C (-40...176°F) |
| Accuracy Temperature | ±0.1 °C (0.18°F) |
| Accuracy Humidity | ±0.95 % RH |
| Analogue outputs | 0-5V, 0-10V, 4-20mA, 0-20mA (3-wire) |
Typical Applications
- High-end HAVC,data centers, swimming halls, outdoor applications
- Agriculture, greenhouse, stables, storage and ripening
- Pharmaceutical Industry, cleanroom monitoring
- Food and beveragem, meat & cheese maturation
