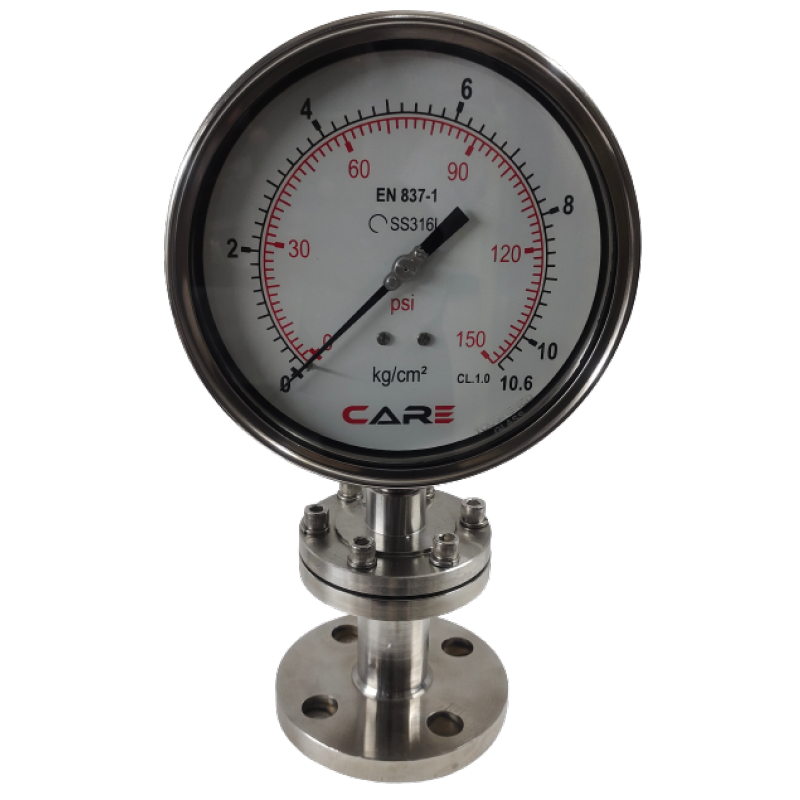

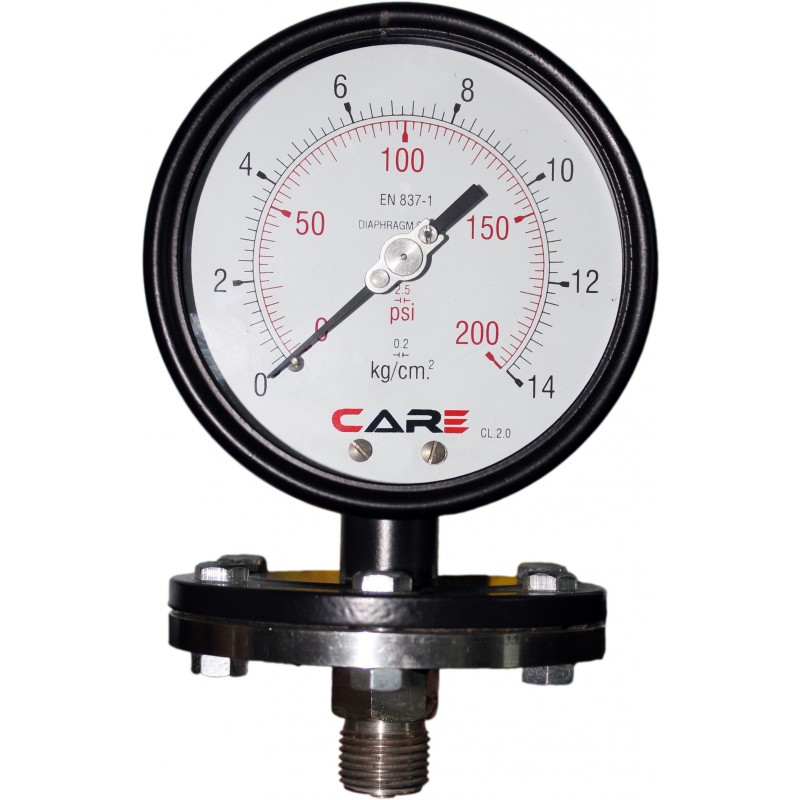

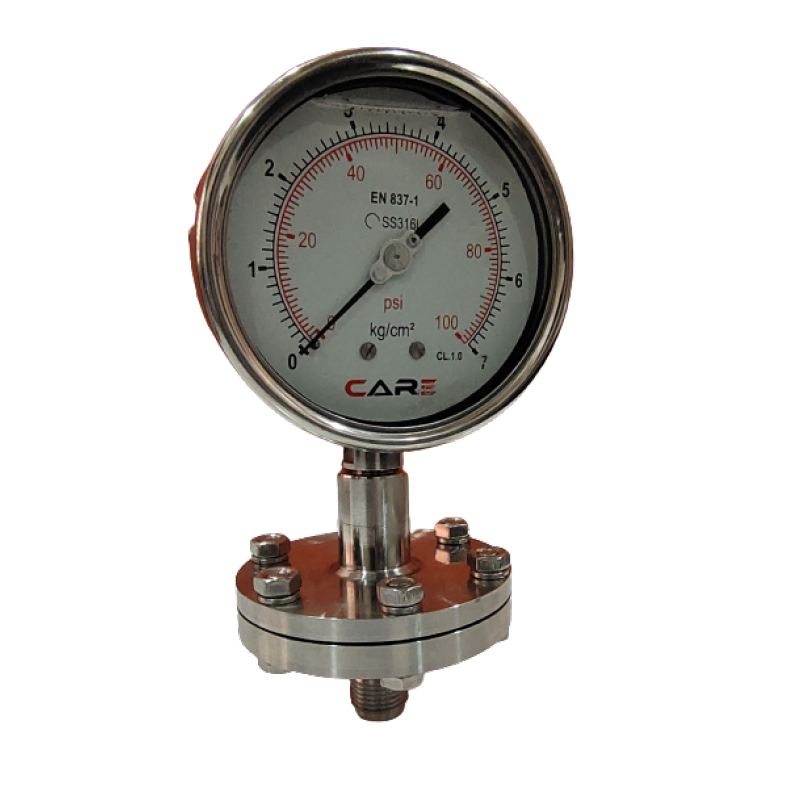

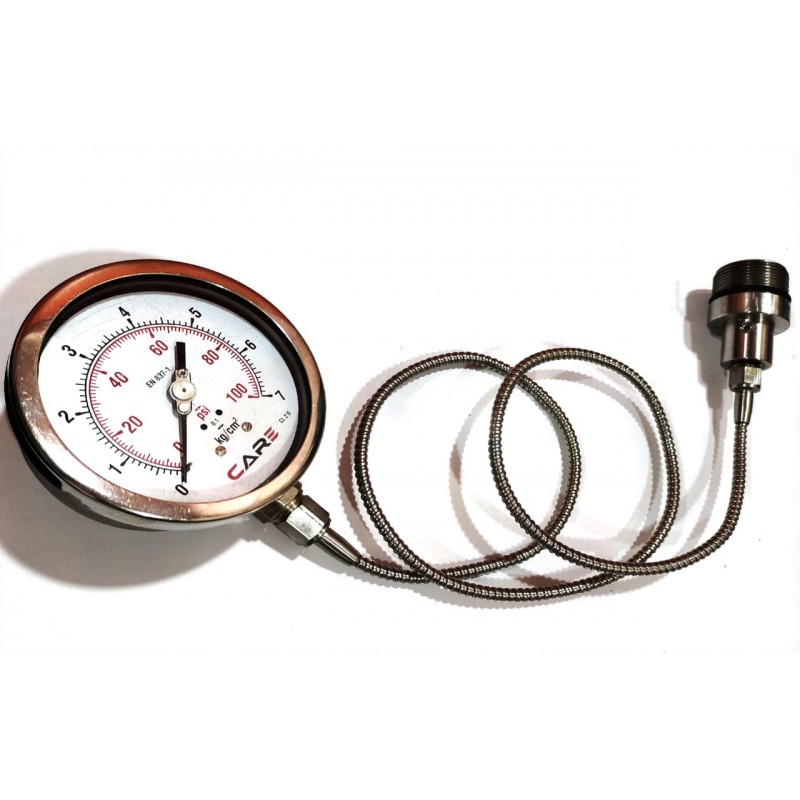

Typical diaphragm seal used for strong acid, alkali and highly viscous crystalize fluids. It is used in chemicals, petrochemicals, papermaking, foods, etc.
Technical Specification
| Ref. Design | EN837-1 |
| Dial | 4"(100mm), 6" (150mm) |
| Case material | AISI SS304 |
| Sensing Element | Bourdon tube |
| Sensing Element material | AISI SS316 |
| Window | Safety Glass |
| Dial | Aluminum white finish with black & Red lettering |
| Pointer | Black aluminum, fixed Bazel: Crimping or Byonet type |
| Filling | Dry or Glycerin |
| Accuracy | Class1.0% FSD |
| Blow of Disc | Provided |
| IP Protection | Weatherproof Operating |
| Temperature | -10 to 70 Deg |
| Process Connection | Threaded/ Flanged |
Application :
It has a particularly strong acid, alkali and viscosity, and is suitable for measuring coagulable fluids. It is used in chemicals, petrochemicals, papermaking, foods, etc
