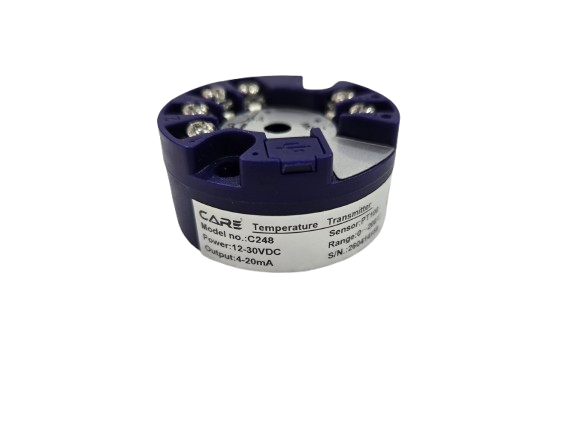

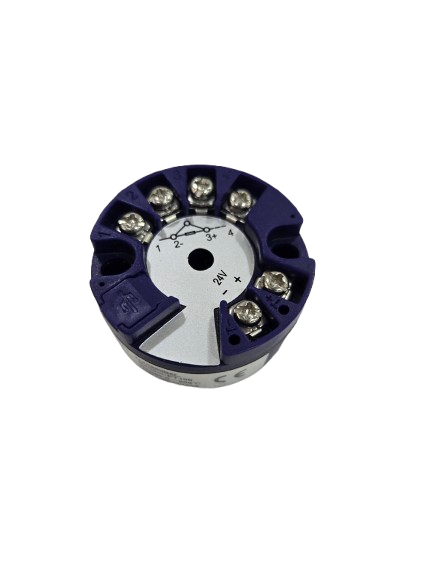

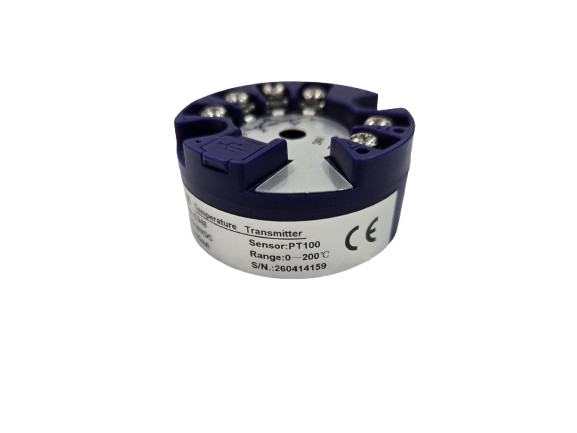

Head Mount Temperature Transmitter Manufacturer & Supplier in Ahmedabad

CPI Technology Private Limited offers a universal Head Mount Temperature Transmitter designed to accept signals from resistance thermometers, thermocouples, resistance inputs and millivolt voltage inputs. The transmitter converts the selected input into a standard 4–20 mA output signal for use with compatible process indicators, controllers, data-acquisition systems and industrial automation equipment.

The unit supports a DC power-supply range of 7.5 to 30 V DC, providing flexibility for integration into compatible instrumentation loops and control systems.

As a manufacturer, supplier and exporter of industrial process instruments in Ahmedabad, Gujarat, India, CPI Technology Private Limited supports original equipment manufacturers, plant engineering departments, system integrators, contractors, procurement companies and industrial users with application-oriented instrument selection and commercial quotations.

What Is a Head Mount Temperature Transmitter?

A head mount temperature transmitter is an industrial signal-conditioning instrument commonly selected for use with temperature sensors and compatible low-level electrical inputs.

Temperature sensing elements such as resistance thermometers and thermocouples generate signals that must be transmitted to an indicator, controller, programmable logic controller or monitoring system. The transmitter receives the selected sensor signal and provides a standardized current output.

The offered universal transmitter supports the following input categories:

• Resistance Thermometer or RTD

• Thermocouple or TC

• Resistance input in Ohms

• Voltage input in millivolts

Its output is a standard 4–20 mA current signal.

The availability of multiple input categories within one transmitter platform can help engineering teams standardize instrumentation requirements across different temperature-measurement applications. However, the exact sensor type, measurement range and configuration requirement must be confirmed when placing an enquiry.

The instrument operates from a power supply of 7.5 to 30 V DC. Final system compatibility should be verified with the receiving control instrument, loop supply and field wiring arrangement.

Universal Input Capability

Industrial plants often use different sensing technologies according to process temperature, operating environment, installation method and application requirement.

A resistance thermometer may be selected for one measuring point, while a thermocouple may be used at another. Some systems may require direct resistance measurement, whereas other applications may generate low-level millivolt signals.

The universal input capability of the transmitter provides compatibility with these broad input categories:

Resistance Thermometer Input

The transmitter accepts an input from a resistance thermometer, commonly identified as an RTD.

An RTD senses temperature through a change in electrical resistance. The exact RTD type, resistance characteristic, measuring range and wiring arrangement must be stated during product selection.

Thermocouple Input

The unit also accepts a thermocouple input.

Thermocouples generate a small voltage related to the temperature difference in the sensing circuit. The required thermocouple type and operating range should be confirmed before the transmitter is configured or supplied.

Resistance Input

The transmitter supports resistance measurement in Ohms.

This input option may be considered where a compatible resistance signal must be converted into a standard current output. The expected resistance range must be specified in the technical enquiry.

Millivolt Voltage Input

The transmitter accepts a low-level voltage signal in millivolts.

The required millivolt input range and its relationship to the process variable should be provided by the buyer for correct selection and configuration.

Key Features

• Universal head-type transmitter for industrial temperature and signal-conversion applications.

• Compatible with Resistance Thermometer or RTD inputs.

• Compatible with Thermocouple or TC inputs.

• Accepts resistance signals measured in Ohms.

• Accepts low-level voltage signals measured in millivolts.

• Provides a standard 4–20 mA current output.

• Operates with a power supply from 7.5 to 30 V DC.

• Supports standardization of different input categories through a common current-output format.

• Suitable for integration with compatible process-control and monitoring systems.

• Available from a process instrument manufacturer, supplier and exporter in Ahmedabad, India.

Technical Specifications

How the Transmitter Works

The transmitter receives the selected sensor or electrical input and converts it into a 4–20 mA current signal.

In a typical instrumentation arrangement, the sensing element detects the process temperature or generates a corresponding resistance or millivolt signal. This signal is supplied to the transmitter input.

The transmitter then conditions the input and provides a current output that can be connected to compatible receiving equipment.

Depending on the plant architecture, the receiving device may include:

• Process indicator

• Temperature controller

• Programmable logic controller

• Data-acquisition system

• Distributed control system

• Compatible monitoring instrument

• OEM machine control panel

The use of a 4–20 mA output provides a common signal format for industrial control and monitoring applications.

The exact input type and measurement range must be selected to match the installed sensor. A transmitter configured for one sensor or range should not be assumed to be suitable for another without verification.

Understanding the 4–20 mA Output

The transmitter provides an output of 4–20 mA.

A current-output signal is widely used in industrial instrumentation because it can be received by compatible indicators, controllers and automation systems. It also provides a standardized interface between the field measurement point and the control or monitoring equipment.

For proper operation, the following must be compatible:

• Transmitter output

• DC power supply

• Receiving instrument input

• Field wiring

• Loop arrangement

• Configured measurement range

• Sensor type

The transmitter should be connected only according to the approved wiring diagram and application requirements.

The receiving device must be capable of accepting a 4–20 mA input. The power supply must remain within the stated range of 7.5 to 30 V DC.

Benefits for Industrial Buyers

Multiple Input Categories

The transmitter accepts RTD, thermocouple, resistance and millivolt inputs. This gives project engineers and system integrators a common transmitter option for different sensing and low-level signal requirements.

Standard Current Output

The 4–20 mA output can simplify integration with compatible industrial control and monitoring devices.

This is particularly useful for OEMs and project companies that prefer a standard signal format across multiple instruments.

Flexible DC Supply Range

The specified power-supply range of 7.5 to 30 V DC provides flexibility when selecting a compatible loop or instrumentation supply.

The actual power supply and complete loop arrangement should be verified during engineering.

Reduced Instrument Variety

A universal input platform can reduce the need to source completely different transmitter families for RTD, thermocouple, resistance and millivolt applications.

This may support more organized procurement, spares planning and project documentation.

Suitable for OEM Integration

The transmitter can be considered by manufacturers of machinery, control panels, process skids and industrial systems that require sensor-signal conversion to a 4–20 mA output.

Application-Based Configuration

The product can be selected according to the required input category and measurement requirement.

Providing complete technical details at the enquiry stage helps avoid incorrect sensor matching or range selection.

Applications of Head Mount Temperature Transmitter

The transmitter can be considered for industrial applications where RTD, thermocouple, resistance or millivolt signals must be converted into a 4–20 mA current output.

Typical areas of application include:

• Industrial temperature measurement

• Process equipment monitoring

• Storage tank temperature monitoring

• Mixing vessel temperature measurement

• Reactor temperature monitoring

• Pipeline temperature indication

• Heating and cooling systems

• Utility equipment

• Boiler-related monitoring systems

• Heat exchanger temperature measurement

• Industrial ovens and dryers

• Food-processing machinery

• Pharmaceutical process equipment

• Chemical-processing systems

• Water-treatment equipment

• Original equipment manufacturing

• Process skids

• Automation panels

• Data-acquisition systems

• Plant instrumentation projects

Actual suitability depends on the sensor type, process temperature, configured range, electrical system, installation conditions and control-system requirements.

The buyer should provide complete application details for technical review before order confirmation.

Industries Served

The universal transmitter can be considered by buyers and engineering teams working in industries such as:

• Chemical processing

• Pharmaceutical manufacturing

• Food and beverage processing

• Dairy processing

• Water and wastewater treatment

• Oil and gas projects

• Petrochemical plants

• Power and utility systems

• HVAC and building-service systems

• Industrial machinery manufacturing

• Packaging machinery

• Process equipment manufacturing

• Boiler and thermal equipment

• Engineering procurement and construction projects

• Factory automation

• Control-panel manufacturing

The product should be selected only after confirming that the required sensor input and power conditions are compatible with the offered transmitter.

Selection of the Correct Input Type

Selecting the correct input is essential for reliable signal conversion.

For RTD Applications

The buyer should specify:

• RTD type

• Required temperature range

• Wiring arrangement

• Number of sensing elements, where applicable

• Process application

The provided product information confirms compatibility with resistance thermometers, but the exact RTD subtype and range must be finalized separately.

For Thermocouple Applications

The buyer should specify:

• Thermocouple type

• Minimum temperature

• Normal operating temperature

• Maximum temperature

• Process application

• Required output range

Different thermocouple types have different signal characteristics. The transmitter configuration must therefore match the actual thermocouple.

For Resistance Applications

The buyer should specify:

• Minimum resistance

• Maximum resistance

• Normal operating resistance

• Required 4–20 mA scaling

• Source of the resistance signal

For Millivolt Applications

The buyer should specify:

• Minimum millivolt value

• Maximum millivolt value

• Direction of the signal

• Required 4–20 mA scaling

• Source of the voltage signal

Complete input information enables the supplier to review the requirement and prepare an appropriate offer.

Information Required for Quotation

To receive an accurate technical and commercial quotation, buyers should provide:

• Required input type

• RTD type, where applicable

• Thermocouple type, where applicable

• Resistance range in Ohms, where applicable

• Voltage range in millivolts, where applicable

• Required measurement range

• Output requirement

• Available DC power supply

• Quantity

• Application or equipment name

• Installation location

• Control-system details

• Delivery location

• Export destination, where applicable

• Required project documentation

The standard output is 4–20 mA, and the stated power-supply range is 7.5 to 30 V DC.

Any additional performance, enclosure, mounting, environmental, certification or communication requirement should be mentioned separately so that its availability can be verified.

Installation and Engineering Considerations

The transmitter should be installed by qualified instrumentation personnel.

Before installation, the engineer should verify:

• Correct sensor input category

• Correct configured range

• Correct sensor wiring

• Correct polarity

• Compatible 4–20 mA receiving input

• Power supply within 7.5–30 V DC

• Suitable cable and termination

• Approved earthing and shielding practice

• Correct loop wiring

• Compliance with plant safety procedures

Improper wiring, incorrect sensor selection or an unsuitable power supply may prevent the measurement loop from operating as intended.

The transmitter should not be connected to an input type or voltage outside the approved specification.

No assumption should be made regarding sensor subtype, accuracy, isolation, ambient rating or enclosure protection unless these parameters are confirmed in the final product data sheet or quotation.

Advantages for OEMs and System Integrators

Original equipment manufacturers often require a repeatable method of converting different sensor signals into a standard control-system input.

The universal input capability can support projects involving different sensing technologies while retaining a common 4–20 mA output format.

This may assist OEMs in:

• Standardizing control-panel inputs

• Simplifying instrumentation schedules

• Reducing transmitter model variation

• Preparing uniform electrical documentation

• Organizing spare-parts requirements

• Integrating sensors with compatible controllers

• Managing multiple machine configurations

The exact transmitter configuration should be documented against each measurement point to avoid interchange errors during manufacturing, installation or maintenance.

Why Choose CPI Technology Private Limited?

CPI Technology Private Limited is an industrial process instrument manufacturer, supplier and exporter based in Ahmedabad, Gujarat, India.

We serve plant users, engineering companies, contractors, OEMs, panel builders, system integrators and procurement departments with application-focused process instrumentation.

Technical Requirement Review

A Head Mount Temperature Transmitter must be matched with the correct sensor input and measurement range.

Our team reviews the available input information, required output, supply voltage and application details before preparing the commercial offer.

Manufacturer and Supplier in Ahmedabad

Our Ahmedabad base enables us to respond to enquiries from industrial buyers in Gujarat and across India.

Customers can submit their technical data sheet, instrument index, bill of quantities or application requirement for review.

Export Supply from India

As an exporter, CPI Technology Private Limited can address requirements from overseas distributors, machinery manufacturers, contractors and industrial project companies.

Export enquiries should include the required quantity, destination, technical requirement and preferred commercial terms.

Support for Project Quantities

Project buyers may submit multiple instrument requirements in one enquiry.

The input category and measurement requirement for each tag or measuring point should be clearly identified.

Clear Technical Documentation

We provide structured product specifications and quotation details to support engineering, procurement and commercial evaluation.

Any parameter not stated in the available specification is treated as subject to confirmation rather than assumed.

Head Mount Temperature Transmitter Supplier in Gujarat

Industrial buyers in Ahmedabad, Vadodara, Ankleshwar, Bharuch, Surat, Rajkot, Vapi and other manufacturing regions of Gujarat can submit enquiries for universal temperature transmitters and related process instruments.

CPI Technology Private Limited supports requirements from:

• Process plants

• Equipment manufacturers

• Instrumentation contractors

• Automation companies

• Control-panel builders

• Engineering consultants

• Project procurement companies

• Industrial traders

• Export houses

For correct selection, the enquiry should clearly state whether the input is RTD, thermocouple, resistance or millivolt.

Request a Quotation

For pricing and availability, send us the required input type, measuring range, output requirement, supply voltage, quantity, application and delivery location.

The standard offered output is 4–20 mA, and the stated power requirement is 7.5–30 V DC.

CPI Technology Private Limited will review the submitted details and provide a suitable technical and commercial response.

Frequently Asked Questions

1. What is a Head Mount Temperature Transmitter?

It is a signal-conditioning instrument that accepts a compatible temperature-sensor or low-level electrical input and provides a standardized output signal. The offered transmitter supports RTD, thermocouple, resistance and millivolt inputs.

2. What output signal does the transmitter provide?

The transmitter provides a standard 4–20 mA current output.

3. Which input types are supported?

The confirmed input categories are resistance thermometer or RTD, thermocouple or TC, resistance in Ohms and voltage in millivolts.

4. What power supply is required?

The specified power-supply range is 7.5 to 30 V DC.

5. Can one transmitter be used for both RTD and thermocouple inputs?

The product is described as a universal transmitter supporting both RTD and thermocouple input categories. The exact sensor type and configured measurement range must be confirmed before supply or installation.

6. What information should be provided when ordering?

Provide the input category, exact sensor type, measurement range, quantity, power supply, application, receiving instrument and delivery location.

7. Where can I buy a Head Mount Temperature Transmitter in Ahmedabad?

CPI Technology Private Limited supplies universal temperature transmitters and process instruments from Ahmedabad, Gujarat, India, for domestic and export requirements.
